MODEL: HUAWEI B528S-23a
PRODUCT DETAIL: 4G WIFI ROUTER(SIM)​​

4G Band B1/3/7/8/20/32/38 (FDD: 2100 MHz/1800 MHz/2600 MHz/ 900 MHz/800 MHz/1500 MHz/TDD: 2600 MHz)
3G BAND: DC HSPA+,HSPA+, HSUPA/HSDPA/UMTS Band 1/8 2100MHz/900MHz
GSM BAND : Band 2/3/5/8 1900MHz/1800MHz/850MHz/900MHz
WIFI: 802.11 b/g/n/ac (2.4 und 5 GHz)

4G SPEED:
LTE DL Speed up to 300 Mbit/s
LTE UL Speed up to 50 Mbit/s
3G SPEED: HSPA+DL (DOWNLOAD) up to 42.2Mbps HSPA+UL up (UPLOAD) to 5.76Mbps FEATURE:
HARDWARE
One power adapter port
 One LAN/WAN GBit port (RJ45)
One phone port (RJ11)
Two external LTE antenna ports (TS9)
One micro-SIM card slot
One Power ON or OFF switch
One WPS button
One Reset button
Indicator:
One power indicator
One Internet status indicator
One WLAN/WPS indicator
One LAN indicator
HiSilicon Balong 722LTE ADVANCE
Dimension : 105 x 90 x 181 mm at 366 g

Software

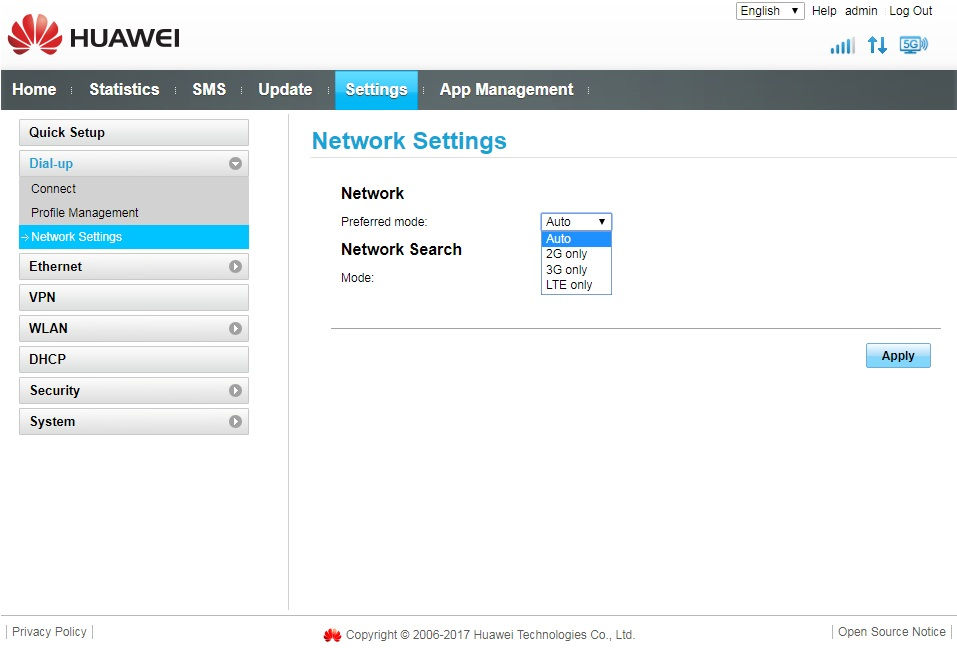

Network mode 2G only. 3g only. LTE only
Ethernet VPN WLAN
Advance DHCP SECURITY (Firewall,Mac fileter, LAN IP Filter,
Virtual Server, Special Application, DMZ,SIP ALG,uPnP,NAT,
Doman Name Filter,DDNS,Parental Control SMS Statistic
