MODEL: HUAWEI H122-373 INTERNATIONAL VERSION (ENGLISH) - HUAWEI 5G CPE PRO 2
PRODUCT DETAIL: 5G 4G WIFI ROUTER(SIM)

Highlight
1 Balong 5000, the World-leading 5G Chipset
Built with the Balong 5000 chipset, supporting carrier aggregation, the theoretical peak download speed of HUAWEI 5G CPE Pro 2 is doubled, reaching up to 3.6 Gbps1. You are able to download HD videos in seconds. Adopting all-new 5G smart antennas,

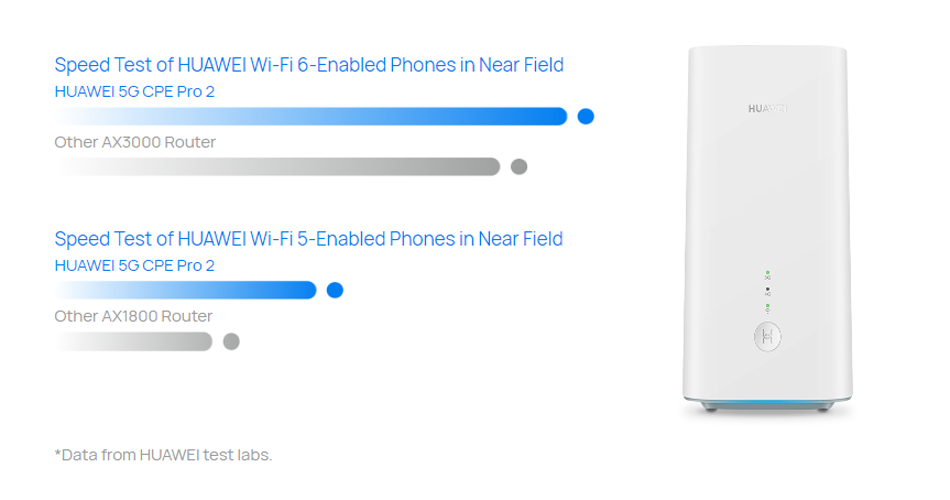

2 HUAWEI Wi-Fi 6+ --- Speed Up Your Wi-Fi to 2976 Mbps.
With Wi-Fi 6, the speed of HUAWEI 5G CPE Pro 2 increases by 150%, boosted to 2976 Mbps on dual bands.6 Its Gigahome Wi-Fi 6 chipset, supporting Chipset Synergy, also allows HUAWEI Wi-Fi 5-enabled phones7 to take full advantage of 160 MHz wide frequency bandwidth.

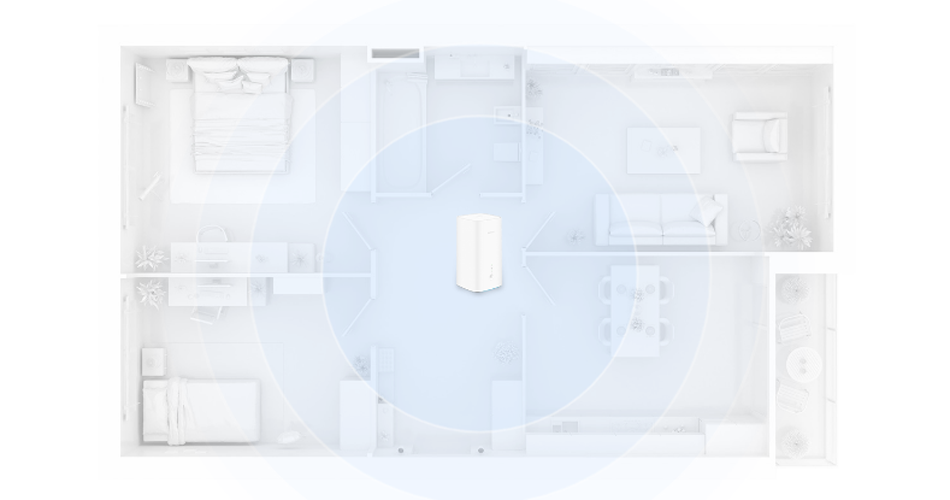

HUAWEI Wi-Fi 6+ --- Cover More Space with Stronger Signals.
Adopting HUAWEI patented magnetic-electric dipole Wi-Fi antenna, HUAWEI 5G CPE Pro 2 allows the signal to travel in all directions alike, covering 30% more spaces8 with evenly distributed signals. Combining Dynamic Narrow Bandwidth Technology (down to 2 MHz) and Chipset Synergy, the coverage of HUAWEI 5G CPE Pro 2 is further improved, allowing HUAWEI Wi-Fi 6-enabled phones to have good reception even when placed in a region far from the router.

3 Silent Cooling Fan. No Disturbance. Only Great Performance.
HUAWEI 5G CPE Pro 2 adopts a 30 dB cooling fan to get rid of any disturbing noise, even during heavy use. The fan will also adjusts its speed depending on the detected temperatures, which allows for efficient heat dissipation and consistent performance over a long period.

5G Band
n1/3/5/7/28(703 – 733 MHz(UL)/758 – 788 MHz(DL))/38/40(2300-2390 MHz)/41/77/78/79/80/84
B1/3/5/7/8/20/28/32 (FDD 700/800/850/900/1500/1800/2100/2600Mhz)
B34/38/39/40/41/42/43 (TDD 1900/2000/2300/2500/2600/3500/3700Mhz)
WIFI
Wireless Frequency Band: 2.4 GHz & 5 GHz, dual-band auto-selection
Dual-band Wi-Fi antenna with four signal amplifiers
IEEE 802.11b/g/n/a/ac/ax

5G SPEED (4X4 MIMO):
5G DL Speed up to 3600 Mbit/s
5G UL Speed up to 650 Mbit/s
4G SPEED (4X4 MIMO+5CC):
4G DL Speed up to 1600 Mbit/s
4G UP Speed up to 150 Mbit/s

HARDWARE:
Balong 5000 multi-mode chip, GigaHome dual-band Wi-Fi chip
One Wan / Lan GE port, one Lan GE port, one SIM card slot (Nano-SIM)
TEL PORT ( NOT WORK WITH ANALOG PHONE)
Key: Reset / Power / H, support HiLink device one-button pairing, compatible with WPS
Led Indicator: 5G / 4G / Wi-Fi / ambient light strip
AC / DC Power Supply: AC: 100 V - 240 V 50 Hz / 60 Hz, DC: 12V / 2A
Dimension : 90 mm (Top edge length) x 96.6 mm (Bottom edge length) x 178 mm (Height)
Weight: About 540 g (excluding the power adapter)

SOFTWARE
DL 5G 4x4 MIMO
DL LTE  4x4 MIMO+5CC
Supports the default route: 0.0.0.0.
Supports manual configuration of LAN IP addresses
Supports Address Resolution Protocol (ARP)
DHCP SERVER: Enables and disables the DHCP server.Configures DHCP server address pools.Sets the lease time.
NAT : Supports NAT and NAPT (compliant witRFC2663, RFC3022, and RFC3027) ,Supports CONE NAT , ICMP
ARP
VPN : Support L2TP VPN client , Support PPTP VPN client
SMS : Writing/sending/receiving extra-long messages
FIREWALL: Firewall enable/disable ,URL filtering LAN IP filtering, Port forwarding (Virtual server), Port triggering (Special Application) ,DMZ service, UPnP service ,ALG settings
LAN: 10/100/1000 Mbps auto-negotiatMDI/MDIX auto-sensing IEEE 802.3/802.3u-compatible
WLAN: Broadcasts and hides service set identifiers (SSIDs),  Complies with IEEE 802.11b/g/n/a/ac/ax,Athentication Supports OpenSystem authentication.Supports encryption using wired equivalentprivacy (WEP).Supports a maximum of 32+32 connectedstations.
